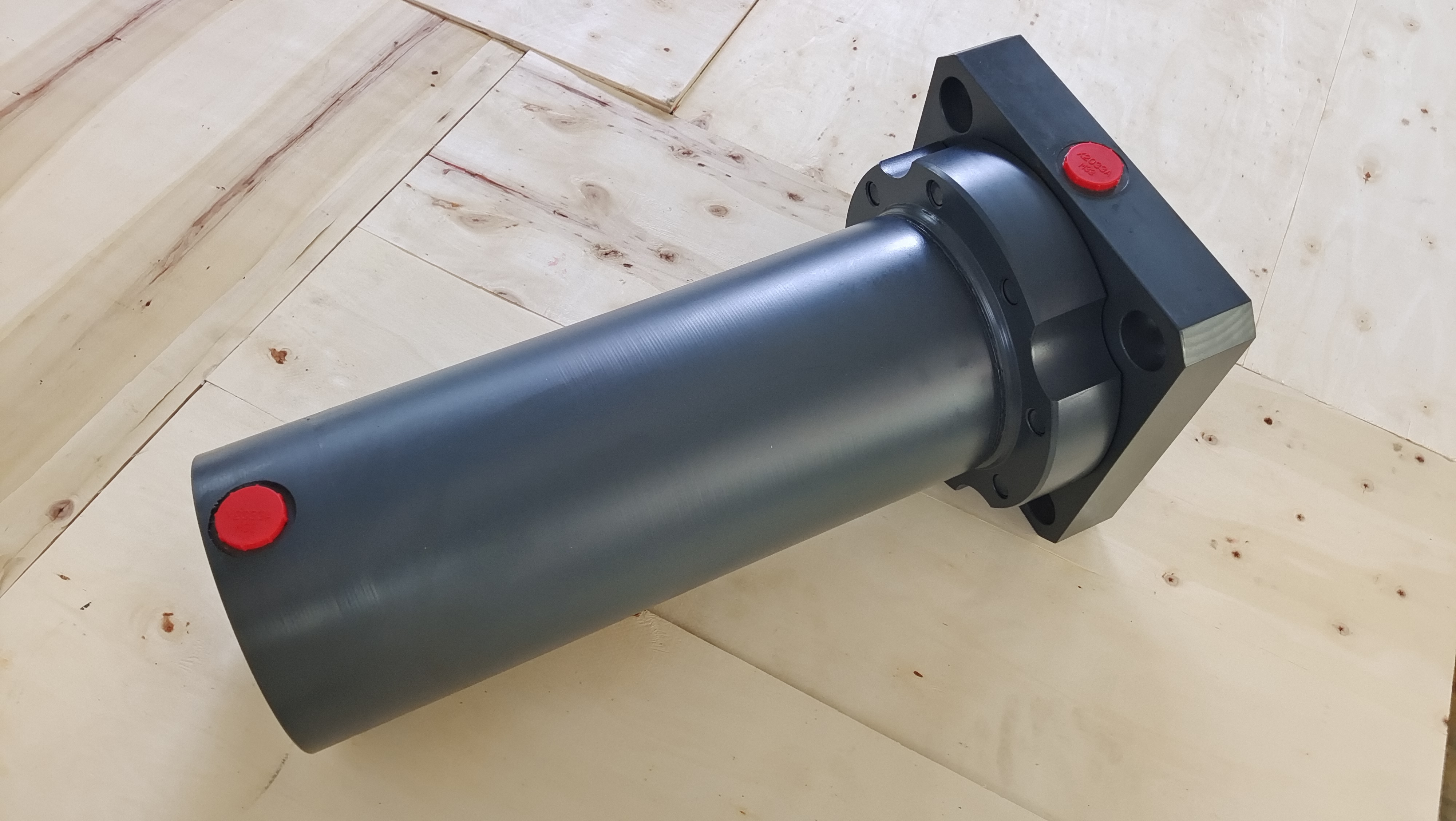

60 Tons Double Acting Hydraulic Cylinder

for Press Machine

The hydraulic cylinders designed and developed by the SD-KEWILL technical team are specifically for presses.  The cylinder bore and stroke are custom-designed according to your equipment requirements, ensuring accurate and seamless installation on your machine.

Sample parameters：

Bore diameter：160mm

Stroke：400mm（custon）

Material: 45# steel heat treatment

Installation form: front flange  connection, sealing, applicability, safety

Rod diameter: 65mm   (Piston rod processing progress: cutting, tempering heat treatment, CNC lathe processing, grinder external grinding, electroplating,hard chrome treatment, grinder polishing.)

Hydraulic cylinder barrel processing : 45# steel or forged,and corresponding heat treatment,providing the material

density and tensile and impact resistance.

Seal Kits: adopt PU90: PU represents polyurethane material, 90 represents material hardness (90 Shore degrees)

The hydraulic cylinder of the press has the dvantages : large output force, stable operation, and high control

accuracy,it can adapt to the working environment and working requirements of different press machines.

Welcome to consult and customize！
