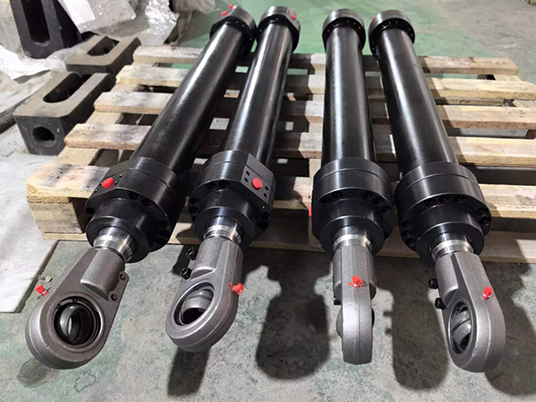

Long Storke Double Acting Large Hydraulic Cylinders

Shandong Kewill Automation Equipment Co., Ltd. specializes in manufacturing High Thrust Double Acting Large Hydraulic Cylinders, supporting customization of various specifications. Welcome to inquire!
Technical Parameters:
Product Name: Long Storke Double Acting Large Hydraulic Cylinders
Model: CD 100/70-800
Thrust: 20 tons
Cylinder Diameter: 100mm
Rod Diameter: 70mm
Stroke: 800mm
Working Pressure: 25MPa
Maximum Pressure: 32MPa
Mounting Type: Earrings with built-in bearings
Working Medium: Mineral Hydraulic Oil
Action: Double Acting
Cushioning: With
Ambient Temperature: -20 to +80°C
Material: 45# Steel
Seal Material: Polyurethane, Nitrile, PTFE
