HSG Series  Engineering Hydraulic Cylinder

Shandong Kewill Automation Equipment Co., Ltd. specializes in manufacturing high-quality HSG series engineering hydraulic cylinders, supporting customization of various specifications. Welcome to inquire!
Technical Parameters:

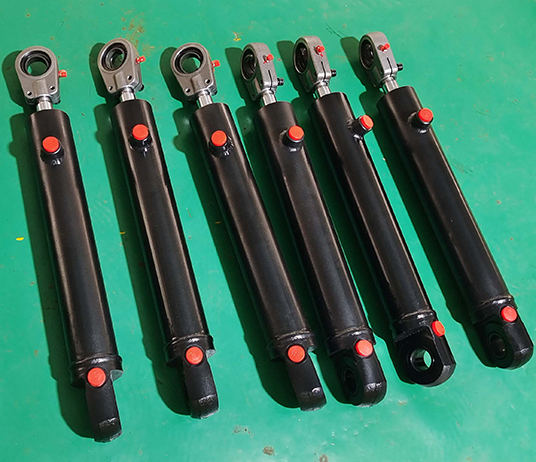

Product Name: HSG series engineering hydraulic cylinders
Model: HSG 50/28 - 120
Thrust: 3 tons
Cylinder Diameter: 50mm
Rod Diameter: 28mm
Stroke: 120mm
Working Pressure: 16MPa
Maximum Pressure: 20MPa
Mounting Type: Earring connection with built-in bearing
Working Medium: Mineral Hydraulic Oil
Action: Double Acting
Cushioning: With
Ambient Temperature: -20 to +80°C
Material: 45# Steel
Seal Material: Polyurethane, Nitrile, PTFE
