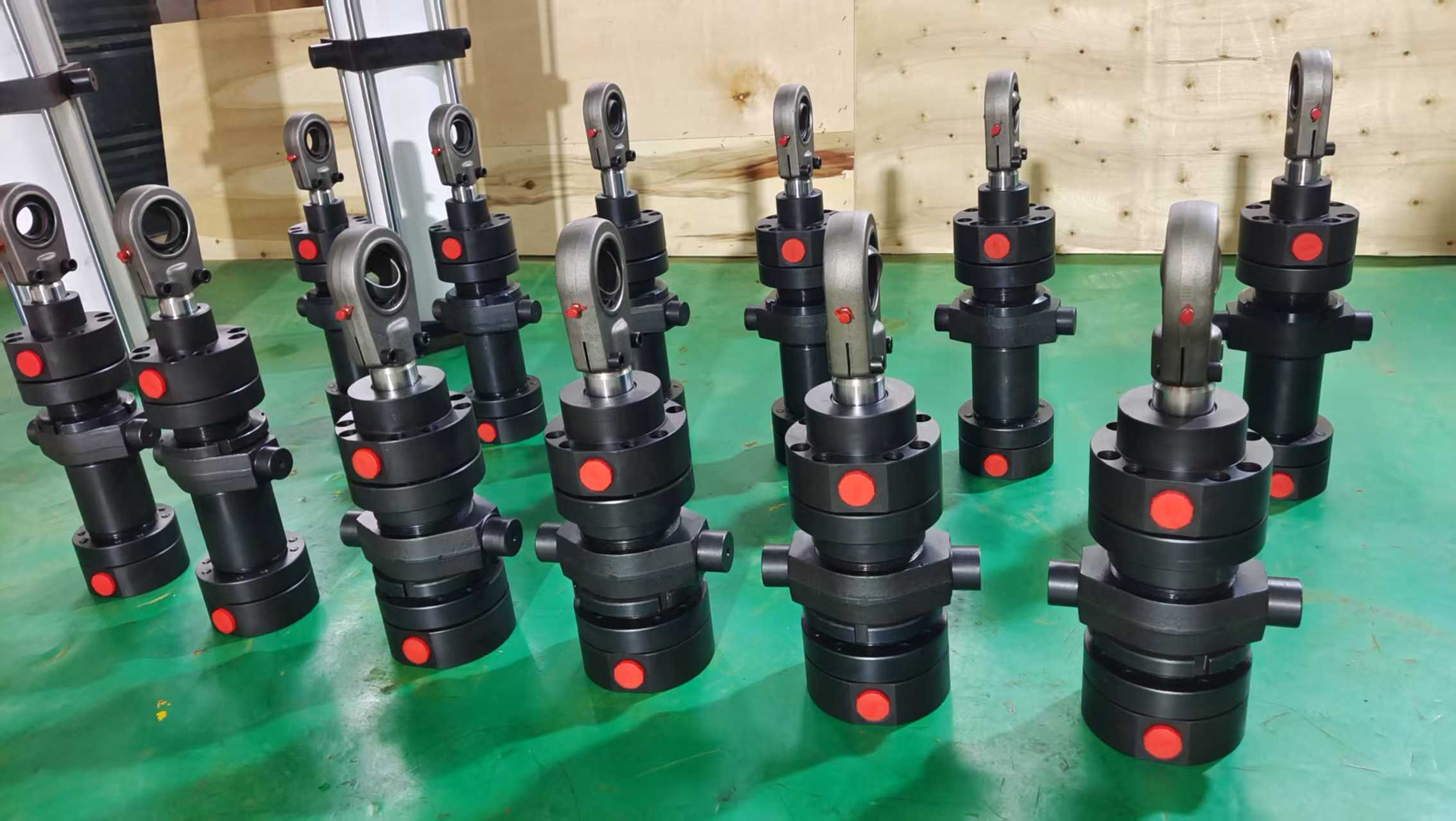

CD250 Heavy Loading High Preasure Hydraulic Cylinders

We manufacture various sizes of CD250 heavy-duty hydraulic cylinders with 10, 20, and 50 ton thrust and lug-operated sway shafts.
Technical Parameters:
Product Name: CD250 12-ton Hydraulic Cylinder
Model: 80/45 - 92
Thrust: 12 tons
Cylinder Diameter: 80mm
Rod Diameter: 45mm
Stroke: 92mm
Working Pressure: 12MPa
Maximum Pressure: 25MPa
Port and Connection Size: M35x1.5 Threaded Connection
Mounting Type: Pin-Shaft Connection
Working Medium: Mineral Hydraulic Oil
Action: Double Acting
Cushioning: With
Ambient Temperature: -20 to +80°C
Material: 45#
Seal Material: Polyurethane, Nitrile, PTFE
